Exceptional Seating fit for The Philharmonie de Paris

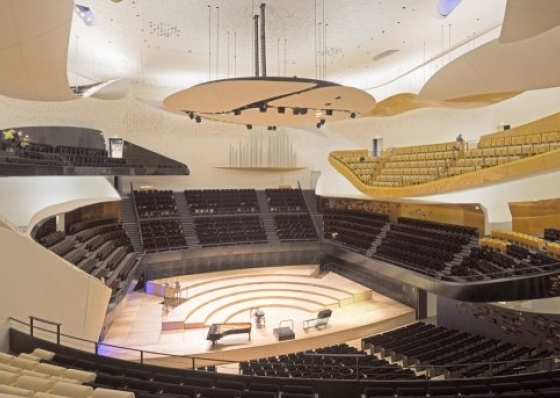

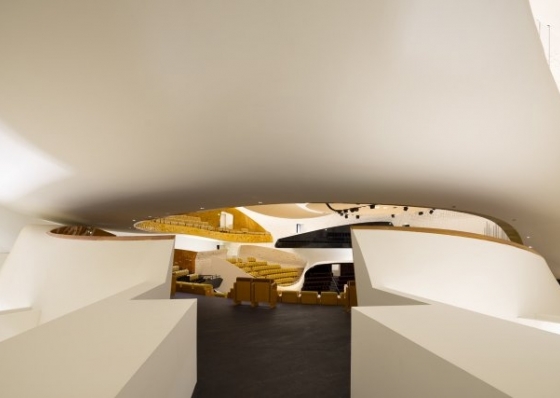

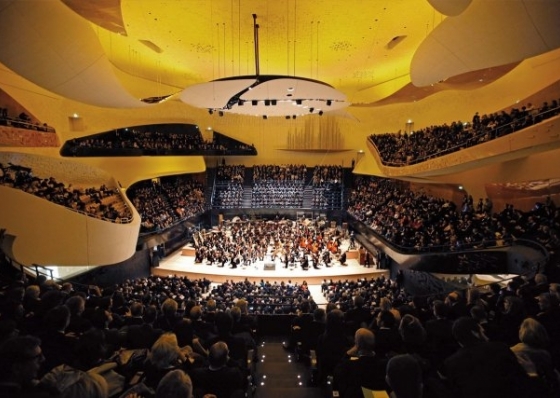

Located in a working-class district, outside the centre of Paris, in the middle of the Parc de La Villette, the Philharmonie rises ready to be a new centre of pilgrimage for music lovers, local residents and even tourists.  Jean Nouvel has created a building that is audacious both inside and out. Covered with 340,000 bird-shaped aluminium sheets in various colours, the building is a type of silver mountain that reflects the green of the park, embeds itself within it and invites passers-by to wander around it.



Challenges and solutions

Figueras International Seating worked personally with the acoustic engineers and stage designers to ensure that the seating designed by Jean Nouvel Ateliers fulfilled the demanding acoustic requirements and contributed to the hall's exceptional all-round acoustics. The challenge of the project lay in creating a seat with extremely low acoustic absorption which would allow higher reverberation to be generated.  This would compensate for the large size of the hall, despite its appearance, as it is wide and well-cushioned. Various changes to the seating and up to 10 acoustic tests, in laboratories in Paris and Barcelona, were needed to achieve the desired product.

Another challenge of the project was to create made to measure seating, a tailor-made product that would adapt perfectly to all corners of the undulating hall. Jean Nouvel conceived the Philharmonie as an adjustable concert hall, which could be adapted for any type of concert or show. Because of this, there are two mobile seating systems and Figueras’ seats had to adapt to them.

The choir, behind the orchestra, has a telescopic  platform for 319 people. Jean Nouvel wanted to go back to the classic choir format, but in this case the seats can be hidden if the area is not in use. The second mobile system is in the stalls in front of the orchestra and enables 476 seats to be hidden under the floor. In this way the stage moves back, allowing standing room for around 1,000  people for concerts of other types of music.



Model supplied
1,800 Philharmonie model seats were installed, which feature a synchronised back and seat mechanism so that it takes up the minimum amount of space when folded up. The Philharmonie seats have 8 different upholstery colours, 5 different widths and 4 different shades of wood. The  wood was treated to get the maximum possible shine, much like pianos, and the different coloured seats mark out different areas, in accordance with the architect's criteria.

The hall also has 282 seats in a variation on the same model with a fixed back for shallow tiers and 319 "minispace" seats which are specifically adapted to the demands of the stage designer for the choir. The Figueras Oxymore seat - designed by Jean Nouvel - was also chosen to enlarge capacity if needed, as there are 300 seats that can be stored away or laid out, depending on the occasion. With this adaptability, the Paris Philharmonie can host classical music, pop, jazz and rock concerts and all kinds of shows.

Find more information of Figueras Seating here



Name: Philharmonie de Paris

Owner: Philharmonie de Paris

Architecture: Jean Nouvel

Acoustics: Harold Marshall (Marshall Day Acoustics) – Toyota - Eckhard Kahle





Models supplied:

Philharmonie seats: 1,800

Philharmonie fixed back seats: 282

MiniSpace seats: 319

Oxymore seats: 308
